Resistive Tap Splitter

Features

· Provides both voice and D-channel data for:
· Avaya INDeX
· Mitel SX200/SX2000
· Siemens Rolm 9751
· Breaks out full-duplex signal into
2 half-duplex signals
· Passive device - No power supply required

Active/Passive Tap 4 or 8 port telephony card: The SmartTAP LD

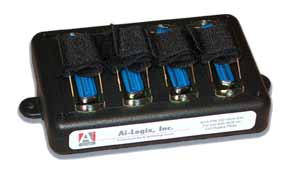

The RTS Box...
The RTS BOX is a tap-point product designed for use with the SmartTAP NGX. Using the RTS BOX with two NGX2400 boards provides a 24-port solution for call recording applications.

The RTS BOX provides voice and D-channel data for the Avaya INDeX, Mitel SX200/SX2000* and the Siemens Rolm 9751. The unique design supports all 3 PBXs with one assembly. The RJ21x Amp connectors provide reliable connections to the NGX, PBX, and phones by treating the PBX as a 4-wire supporting half the channels.

PART NUMBER

910-2013-001

RTSBox
