Call Recording for IP-PBXs

Key Features and Benefits

Multiple PBX Support
The same hardware can be used to interface with majority of the industry leading IP-PBXs.

Multiple Protocol Support
The same hardware supports SIP, H.323 and Skinny (SCCP) and is designed to accommodate future protocols with just a software upgrade.

Mirror Port Independent
May be placed anywhere in the system to accommodate specific application requirements.

Flexible Event Triggering
Applications can start and stop recording based on AudioCodes call control or take advantage of PBX/protocol specific messages.

RTP Forwarding
A single IPX can forward media (RTP) to multiple network devices such as an IPM260 or the soft recorder.

Active/Passive Tap 4 or 8 port telephony card: The SmartTAP LD

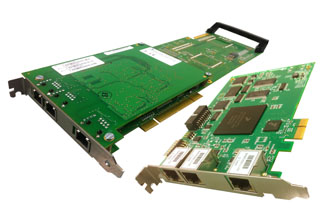

The SmartWORKS™ IPX...
The SmartWORKS IPX is an essential component of your call recording solution that provides packet filtering and media forwarding for IP-PBXs. Supporting multiple protocols, it has 2 on-board connections for monitoring up to 480 stations of upstream and downstream RTP and one on-board connection for media output. The IPX provides complete event triggering, and call state reporting for many of the industry leading IP-PBXs. Full media capabilities are available when the IPX is combined with the IPM 260 or a soft recorder.

Tap Environment
The IPX is designed for IP call recording applications. It’s active interfaces can be connected directly to an available mirror port or, when used in conjunction with a TX100, can be connected passively anywhere within the IP-PBX configuration. Up to 480 media sessions per board can be monitored at a time.

Session Management
The IPX software includes a Session Manager for tracking media sessions on the IP network. Each media session is treated as a unique call with a unique Session ID. Your application can easily manage media forwarding with the Session IDs provided by the IPX.

Station Management
Automatically locates all VoIP endpoints on the network and assigns each a unique Station ID. IPX software dynamically identifies phones as they are added to the network and reports when they are removed

Applications
Click to see how the product functions with the SmartWORKS™ API...>

Click to see how the IPX integrates into your application...>

PRODUCT SPECS

HARDWARE SYSTEM REQUIREMENTS
P4 CPU at 850MHz
ATX PCI motherboard or passive back-plane with 3.3V ATX power supply
PCI 2.3 bus
Bus speed: 33 or 66MHz
Bus Mode: 32 bits

TECHNICAL SPECIFICATIONS
Max. per system: 2
LEDs:
3 LEDs - board state
1 LED - host to board communication
2 LEDs per Ethernet port

ENVIRONMENTAL CONDITIONS
Operating Temperature: 0C to 50C
Storage temperature: -20C to 85C.
Humidity: 8% to 80% non-condensing
Storage humidity: 8% to 80% non-condensing

OPERATING SYSTEM REQUIREMENTS
Windows 2000, 2003 server, and XP
Linux (planned for 2006)

POWER REQUIREMENTS
3.3 V: TBD
+5V: TBD
+12V: TBD
-12V: TBD

PHYSICAL CHARACTERISTICS
Form factor: Full size PCI card
Host interface: PICMG 2.3
Ethernet Interface: Complies with 802.3 10/100Base-T
Connector: 3xRJ45

VOIP PROTOCOLS
Cisco Call manager (SKINNY)
Avaya Office manager (H.323)
Ericsson (H.323)Nortel (UNIStim)
Others: Contact AudioCodes Sales.

SAFETY AND CERTIFICATIONS*
(*Pending)
Emissions: EN55022, FCC part 15 class A.
Immunity: EN55024
Safety: EN60950

PART NUMBER
TX100 North America 910.0331.003
TX100 Universal 910.0331.002
TX100i 910.0331.004

ACCESSORIES
19” Rackmount Kit (Max 3): 910.0331.005
Blank Panel: 910.0331.006

WARRANTY
3 years standard

PART NUMBER

910-0331-007 IPX-C (Includes 30 licenses)

910-0905-001 IPX-C expansion licenses

PBX MODELS SUPPORTED
Alcatel, Avaya, Cisco, Ericsson, InterTel, NEC, Nortel, Siemens

Confirm with your sales person for more details on the exact model number and phone set type supported.
