SmartWORKS™ MIC BOX

DATASHEET
Get the the datasheet for this product
Download PDF


Voice Aquisition Device


















SmartWORKS™ MIC BOX Series

Key Features and Benefits
The SmartWORKSTM MIC BOX moves away from traditional telephone call recording to capture live conversations. By utilizing our new microphone capture technology, businesses can now record any transaction necessary, whether for verification or dispute resolution.

• High Sensitivity Microphone
• Built-in High Pass Filter
• LED voice activity indicator
• Manual Button to Trigger Recording (Optional)
• External Remote Trigger (Optional)
• External Microphone (Optional)
• 1 Power Supply for 24 MIC BOXes




BUSINESS USE CASES
There are many uses for SmartWORKS LIVE Recording. Any place where a transaction may occur is an ideal spot to deploy a SmartWORKSTM MIC BOX. Negotiation rooms, Bank Tellers, Loan Closings, Home Closings, Interviews, Dispute Conferences and Court Rooms are only a sample of where the SmartWORKSTM MIC BOX can be deployed.

Recording using LD
VOX Trigger: Using the voice activity detectors of the SmartWORKS LD Board (requires application), conversations can be automatically recorded.
Voltage Trigger: Using the voltage detectors of the SmartWORKS LD Board (requires application), conversations can be automatically recorded when the manual button is pressed.

External Power Supply
Drive multiple microphones with a single power supply, significantly simplifying the installation process.






Applications

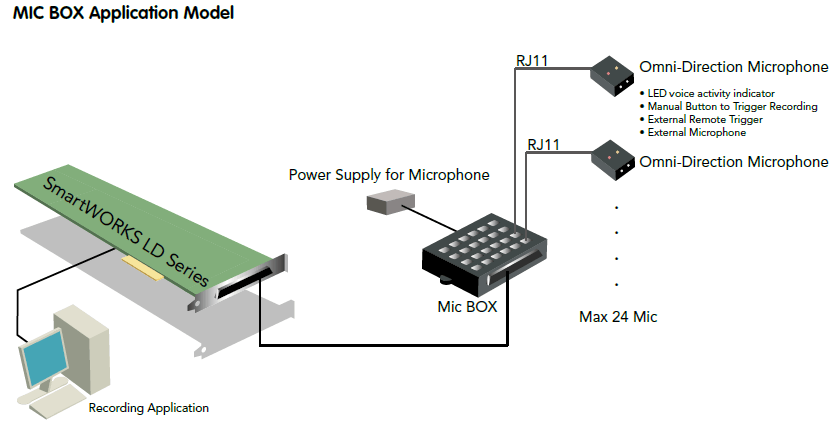

Click to see how the MIC BOX integrates into your application...>



Power
Power Requirement: DC 15V~24V (External Power Adaptor connected to RJ11 Breakout box)
Current Consumption: 4mA

Specifications
Dimension: 50mm(L) x 35mm(W) x 20mm(H)
Operation Temperature: -20~70 C
Amplifier Fidelity: 0.1%
Manual Trigger Switch: 10V DC Normal State / Push button Momentary 24V DC 800ms
Microphone Type: Omni-direction Condenser
External Microphone: Audio Jack 3.5 mm (Internal Microphone disabled when connected)
Remote Trigger Switch: Audio Jack 2.5mm

Telephony
Frequency Response: 600Hz ~ 3400Hz +/- 3db
Signal /Noise ratio: 50db
Output Impedance: 50ohm
Connections: RJ11 Connector (2wires)
Low Frequency Elimination: -40db (50Hz or 60Hz)
Sensitivity: -42db

Cable Lenth
Maximum length of RJ11 connector: 750 meters

Order Information
910-0800-001: Microphone
910-0800-002: RJ11 Breakout Box with power adapter

PART NUMBER
910-0800-002 Breakout Box
910-0800-001 Mic (Qty 4)
