HPXMedia™

DATASHEET
Get the the datasheet for this product
Download PDF



VoIP Recording Device




















HPXMedia™

Key Features and Benefits
SmartWORKSTM HPXMedia recorder, a host based recording solution, has been designed to work with the  IPX or HPX product.


Key Features and Benefits

• Low/High Density VoIP Recording
• Automated Stop Recording
• Media Control - CODECS
• DTMF Tone Detection (RFC 2833)
• Programmable Jitter Buffer
• Full-duplex Recording
• Stop Recording Triggers
• File Offset (recording to file)
• Single Side recording





VoIP Call Recording
Supports multiple CODECs commonly used on VoIP networks. Encoding support of both low/high bit rate formats with .WAV header support.

High Density Architect
The HPXMedia is designed to create a high density recording solution by offering recording capabilities up to 480 conversations per server. Communicates over TCP/IP allowing for a geographically separate installations of multiple servers (under development).

Automated Termination of Recording
The HPXMedia API provides programmatic control of termination conditions while recording. Provides maximum time and file size (bytes) conditions to control the automated termination of recording.

Automatic Summation
Complete support of full-duplex recording. Once recording is initiated the AudioCodes automatically
sums the conversation without application management.

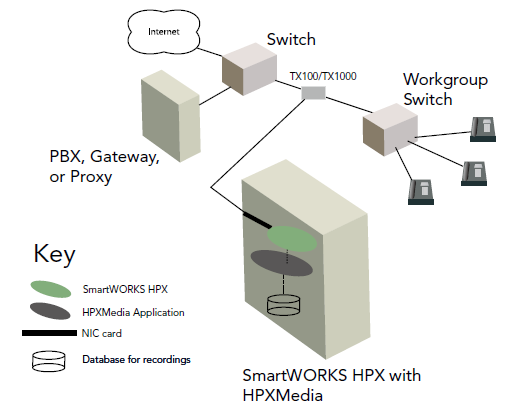

Applications
Click to see how the HPXMedia integrates into your application...>



HARDWARE SYSTEM REQUIREMENTS
Dual Core 1.6 GHz CPU , 1 Gig RAM or better for 100 conversations


Operating Systems
Windows2000 Professional/Server, WindowsXP Professional (SP3), Windows2003 server (32-bit/64-bit), Windows2008 server (32-bit/64-bit), Widnows7 (32-bit/64-bit), Windows8 server
TELEPHONY INTERFACING
IP Interface: Designed to support RFC 3550
Jitter Buffer: Programmable jitter buffer
RTP Port Management: The HPXMedia supports any number management skema, no restrictions apply
CODECs: RAW, WAV file formats PCM, G.711, G.729A, G.723 & GSM. Other LBR CODECs available, contact Product Manager for details,

SOFTWARE
SDK:HPXMedia API · License Key Utility
DTMF Tone Detection: DTMF digits: 0 - 9, *, #, A, B, C, D · Primary & Secondary stream - out-of-band RFC 2833
Audio Digitizing: Microsoft GSM & μ-law or A-law per G.711
Gain Control: Programmable gain can be set per each input (upstream/downstream)
Recording Termination: Automatic stop record upon maximum time and file size (bytes)

MODELS AVAILIBLE
SmartWORKS™ IPX
SmartWORKS™ HPX
SmartWORKS™ HPXmedia
TX100/TX1000

SERVER CONFIGURATIONS (HPX+HPXMedia)
1-150 Channel
• Windows2008 32bit
• Quad Core 2GHz
• 3Gb Memory
• 250Gb 7200 RPM C:\
• Dual Gb NIC (HPX)
• PCIe slots (IPX)
• 1 USB Port
1-300 Channel
• Windows2008 32bit
• Quad Core 2GHz
• 4Gb Memory
• 250Gb 7200 RPM C:\
• Dual Gb NIC (HPX)
• PCIe slots (IPX)
• 1 USB Port

Part number
910-0910-001 HPXMEDIA Lic.
912-0801-004 HPX StarterKit, 10Ch HPX & 10Ch HPXMEDIA
912-0801-008

HPX Dongle 30ch, 30Ch HPX & 30Ch HPXMEDIA

912-0801-005

HPX Dongle 50ch, 50Ch HPX & 50Ch HPXMedia

910-0705-001

IPX-EX, IPX-EX30ch+HPXMedia30ch

912-0331-002

IPX-C, IPX-C30ch+HPXMedia30ch

910-0905-001

IPX-C expansion licenses(10ch)

910-0705-001 IPX-EX, IPX-EX30ch+HPXMedia30ch
912-0331-002 IPX-C, IPX-C 30ch+HPXMedia30ch
