Call Recording for IP-PBXs

SmartWORKS™ IPX Series

Key Features and Benefits
• Universal PCI & PCI Express
• Two 100/10 BT ports for non-intrusive
monitoring
• One 100/10 BaseT active NIC
• Forwards VoIP RTP sessions to one or
more network devices
• Processes all VoIP call and terminal control
signaling
• SmartWORKS API
(Common to all SmartWORKS boards)
• Field upgradeable
• Low to high density - call capacity to monitor up to 480 active VoIP endpoints. Limited by license
• RTP timeout & RTCP Qos
• Available for Windows 2000, XP, Windows
2003 server, windows2008 server, windows7,
Windows8 Server

Active/Passive Tap 4 or 8 port telephony card: The SmartTAP LD

The SmartWORKS™ IPX...
The SmartWORKS IPX is an essential component of your call recording solution that provides packet filtering and media forwarding for IP-PBXs. It has one on-board connection for forwarding up to 960 RTP streams and two on-board connections for monitoring the IP traffic at the wire speed. When combined with the HPXMedia, the IPX provides complete event triggering, call state reporting and media processing for many of the industry leading IP-PBXs.

Multiple PBX Support
The same hardware supports multiple protocols including Skinny and Avaya and is designed to accommodate future protocols such as SIP and H.323 with just a software upgrade.

Multiple Protocol Support
The same hardware supports SIP, H.323 and Skinny (SCCP) etc. and is designed to accommodate future protocols with just a software upgrade.

Flexible Event Triggering
Applications can start and stop recording based on AudioCodes call control or take advantage of PBX/protocol specific messages.

Tap Environment
The IPX is designed for IP call recording applications. It’s active interfaces can be connected
directly to an available mirror port or, when used in conjunction with a TX100/TX1000, can be
connected passively anywhere within the IP-PBX configuration.
Up to 480 media sessions per board can be monitored at a time.

Session Management
The IPX software includes a Session Manager for tracking media sessions on the IP network.
Each media session is treated as a unique call with a unique Session ID.
Your application can easily manage media forwarding with the Session IDs provided by the IPX.

Station Management
Automatically locates all VoIP endpoints on the network and assigns each a unique Station ID.
IPX software dynamically identifies phones as they are added to the network and reports when
they are removed.

RTP Timeout & RTCP QoS
IPX detect the RTP timeout, when exceed the time set in the SmartControl, the IPX regard this
call is already ended and report the ““EVT_MEDIA_SESSION_STOPPED” to user application.
This feature can avoid the recording problem due to lost packets.

Applications
Click to see how the product functions with the SmartWORKS™ API...>

Click to see how the IPX integrates into your application...>

PRODUCT SPECS

HARDWARE SYSTEM REQUIREMENTS
Dual Core 1.6 GHz ATX PCI motherboard or passive back-plane with 3.3V ATX power supplier, PCI2.2/PCI3.0/PCI-X/PCI-E bus ·
Bus speed: 33 or 66 MHz · Bus mode: 32 bits

Operating Systems
Windows2000 Professional/Server, WindowsXP Professional (SP3), Windows2003 server (32-bit/64-bit), Windows2008 server (32-bit/64-bit), Widnows7 (32-bit/64-bit), Windows8 server

Technical Specifications
Max. per system:8
LEDs:
3 LEDs - board state
1 LED - host to board communication
2 LEDs per Ethernet port

POWER REQUIREMENTS
3.3 V: 2A
+5V: 15mA

VoIP Protocols
Cisco Call Manager (Skinny)
Avaya Office Manager (H.323) , IP Office
Ericsson (H.323)
Nortel (Unistem/SIP)
SIP (Station Side/ Trunk Side)
H.323 (Station Side/ Trunk Side)
Alcatel OmniPCX 4400
Siemens Hi-Path 4000
Intertel CS-5200
NEC NEAX 2400
ShoreTel (VOX only)
Alcatel OXE
Panasonic TDE/NCP
Astra NexSpan XS
LG iPECS
NEC SV8X00
Others: Contact Ai-Logix Sales.

Safety and Certifications
Emissions:EN55022, FCC part 15 class A
Immunity:EN55024
Safety:EN60950

Environmental Conditions
Operating Temperature:0C -- +50C
Storage Temperature:-20C -- +85C
Humidity:8% - 80%
Storage humidity:8% - 80%

MODELS AVAILABLE

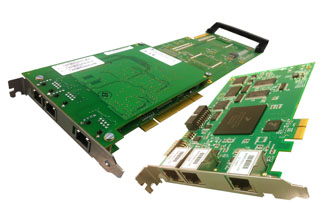

SmartWORKS™ IPX-EX (Half Size/PCI Express)
SmartWORKS™ IPX (Full Size/PCI-X)
SmartWORKS™ HPXMedia
TX100/TX1000

Physical Characteristics
Form factor:Full size PCI card
Host interface: PICMG 2.3
Bus speed:33 or 66MHz
Bus Mode:32 bits
Ethernet Interface:Complies with 802.3
10/100Base-T
Connector:3xRJ45

PBX MODELS SUPPORTED
Alcatel, Avaya, Cisco, Ericsson, InterTel, NEC, Nortel, Siemens

Confirm with our sales person for more details on the exact model number and phone set type supported.

Part number
910-0705-001	IPX-EX, IPX-EX30ch+HPXMedia30ch
912-0331-002	IPX-C, IPX-C30ch+HPXMedia30ch
910-0905-001	IPX-C expansion licenses(10ch)
