SmartWORKS™ HPX

DATASHEET
Get the the datasheet for this product
Download PDF


Call Recording for IP-PBXs (Software Products)




















SmartWORKS™ HPX Series

Key Features and Benefits
The SmartWORKS HPX is an essential component of your call recording solution that provides packet filtering and media forwarding for IP-PBXs.

• Eliminates need for hardware
• Multiple PBX/Protocol Support
• Runs without a PCI slot
• Flexible Event Triggering
• RTP Forwarding
• Uses SmartWORKS API
• Supports 10/100/1000 network interfaces
• Decodes proprietary VoIP signaling as well as standard SIP and H.323
• Scalable - 1 to N Sessions support per server. 480 session support tested and certified. HPX performance limited by Server capabilities and Network bandwidth. It may be possible to exceed 480 sessions
• RTP timeout & RTCP Qos



Tapping Environment

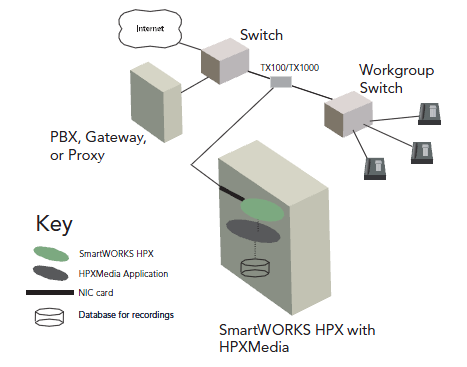

The HPX is the first software only SmartWORKS blade. The host computer’s NIC card can be connected directly to an available mirror port. When used in conjunction with a TX100, it can be connected passively anywhere within the IP-PBX configuration.

Session Management
The HPX includes a Session Manager for tracking calls and media sessions on the IP network. Each media session is treated independently with a unique session ID. Your application can easily manage call forwarding with the session IDs provided by the HPX software using the SmartWORKS API.

Station Management
Automatically locates all VoIP stations on the network and assigns a unique ID to each endpoint. HPX dynamically identifies phones as they are added to the network and reports when they are removed.


RTP Timeout & RTCP QoS

HPX detect the RTP timeout, when exceed the time set in the SmartControl, the
HPX regard this call is already ended and report the “EVT_MEDIA_SESSION_STOPPED”
to user application.  This feature can avoid the recording problem due to lost packets.





Applications

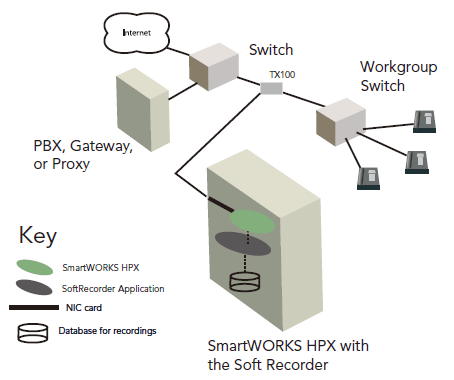

Click to see how the HPX integrates into your application...>
  PRODUCT SPECS

Hardware Requirements
Dual Core 1.6 GHz CPU , 1 Gig RAM or better for 100 conversations

Operation System
Windows2000 Professional/Server, WindowsXP Professional (SP3), Windows2003 server (32-bit/64-bit), Windows2008 server (32-bit/64-bit), Widnows7 (32-bit/64-bit), Windows8 server
VoIP protocols
Cisco Call Manager (Skinny)
Avaya Office Manager (H.323) , IP Office
Ericsson (H.323)
Nortel (Unistem/SIP)
SIP (Station Side/ Trunk Side)
H.323 (Station Side/ Trunk Side)
Alcatel OmniPCX 4400
Siemens Hi-Path 4000
Intertel CS-5200
NEC NEAX 2400
ShoreTel (VOX only)
Alcatel OXE
Panasonic TDE/NCP
Astra NexSpan XS
LG iPECS
NEC SV8X00
Others: Contact Ai-Logix Sales.

RTP Forwarding
Certified for forwarding 480 full duplex media sessions

Application Performance
Capacity to monitor from 1 to N active VoIP endpoints limited by license. Certified for 480 Monitoring and Forwarding HPX performance limited by Server capabilities and Network bandwidth. It may be possible to exceed
480 sessions

MODELS AVAILABLE
SmartWORKS™ HPX
SmartWORKS™ HPXMedia
TX100/TX1000
Part number
912-0801-004

HPX StarterKit, 10Ch HPX & 10Ch HPXMEDIA

912-0801-008

HPX Dongle 30ch, 30Ch HPX & 30Ch HPXMEDIA

912-0801-005

HPX Dongle 50ch, 50Ch HPX & 50Ch HPXMedia

910-0909-001

HPX Lic, 10Ch License Bundle For HPX

910-0910-001

HPXMEDIA Lic, 10Ch License Bundle For HPXMEDIA
