Ai-Logix TX1240



VoIP Traffic Controller for Call Recording




















Ai-Logix TX1240

Key Features and Benefits
• VoIP Traffic Filtering
• Traffic Load Balancing
• Traffic Replication
• Traffic Aggregation
• Traffic Deaggregation
• Session-oriented traffic convergence
• Failover to multiple Recording Servers
• Over 1,000 options to filter VoIP data
• Multiple Load Balancing Options
• Fiber or Copper Configurations
• Flexible user-defined input/output ports
• Traffic Management in Maintenance Mode
• Filtering based on L3~L7 information









Applications

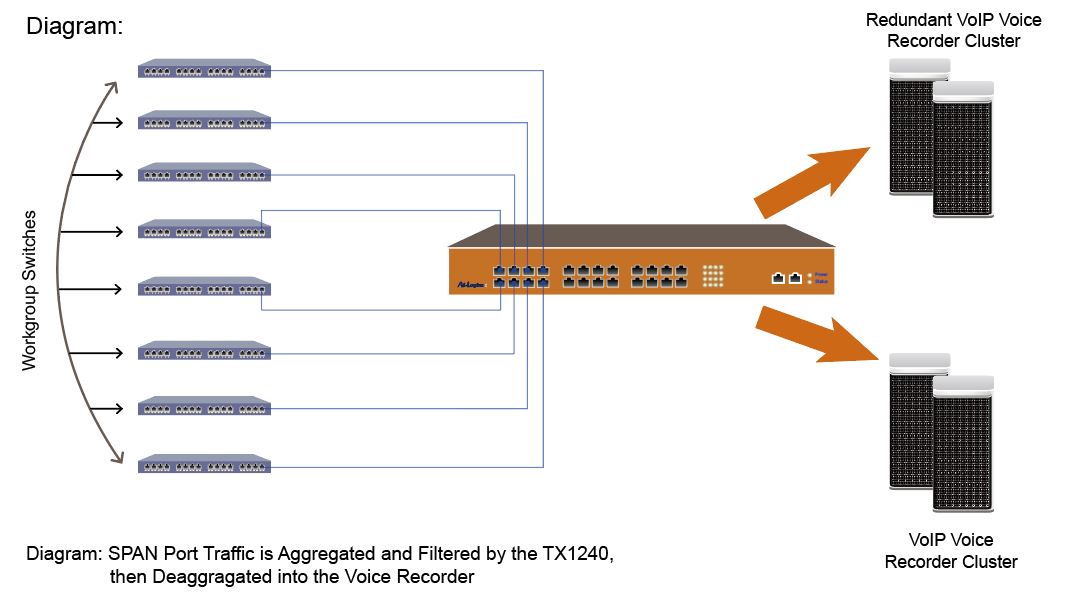

Diagram: SPAN Port Traffic is Aggregated and Filtered by the TX1240, then Deaggragated into the Voice Recorder...>



Network Interface
24 GE interfaces, SFP or RJ45
Optional add 0/2/4 x 10GE interface, SFP+

Management Interface

1 x 10/100M Management Port, RJ45
1 standard UART serial console port, RJ45

LED

Network Interface: Link/ACT/Speed
Management Interface: Link/ACT
Power, Status

Power Input

AC: 90 ~ 264V (47 ~ 63Hz)
DC: -38 ~ -60V

Power Consumption

220W (Max.)

Environment
Working Temperature: 0 to 45 C

Storage Temperature
-40 to 70 C

Humidity
5 to 95% (non-condensing

Size
Net Size (Width x Height x Depth): 440mm x 44.4mm x 450mm
Packing Size (Length x Width x Height): 540mm x 530mm x 170mm

Weight
Net Weight: 8KG
Packing Weight: 10KG

Environmental protection
RoHS5
