SmartWORKS™ MIC BOX

DATASHEET
Get the the datasheet for this product
Download PDF

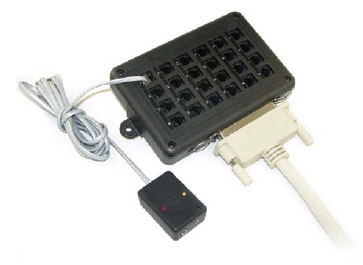

Voice Aquisition Device




















SmartWORKS™ MIC BOX Series

Key Features and Benefits
The SmartWORKSTM MIC BOX moves away from traditional telephone call recording to capture live conversations. By utilizing our new microphone capture technology, businesses can now record any transaction necessary, whether for verification or dispute resolution.

• High Sensitivity Microphone
• Built-in High Pass Filter
• LED voice activity indicator
• Manual Button to Trigger Recording (Optional)
• External Remote Trigger (Optional)
• External Microphone (Optional)
• 1 Power Supply for 24 MIC BOXes




Tap Environment
The LD series accomodates low to high density environments with 4, 8, 16, or 24 port boards. The SmartWORKS™ API supports a total of 512 channels per system. The tapping point can be anywhere on an analog line: between Central Office and PBX, Central Office and phones, or PBX and phones.
Terminate Environment
The LD series can be used to initiate as well as terminate calls. When configured as an interactive resource, phone lines can directly connect to and terminate on the LD boards. Standard ring detection is available.

World-Wide Analog Support
The SmartWORKS™ LD supports passive call recording on ground start and loop start analog networks. It has line terminating capabilities for loop start environments. Features such as programmable voltage thresholds, voltage detection, and polarity reversal are managed through the common SmartWORKS™ API. As a result, the SmartWORKS™ LD easily adapts to variations found on analog systems throughout the world.

Built in Performance Monitoring
Built in voltage detection allows SmartWORKS™ LD to distinguish a disruption of service if a cable is damaged or disconnected. This feature is unique in the industry and only available on the LD series.







Applications

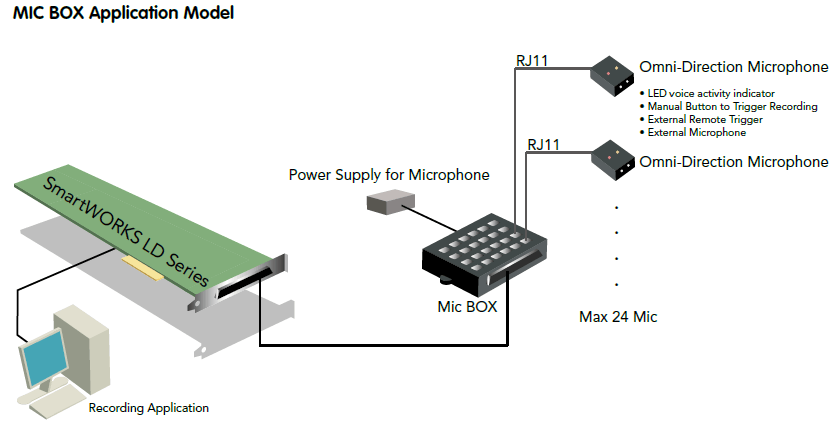

Click to see how the MIC BOX integrates into your application...>



Power
Power Requirement: DC 15V~24V (External Power Adaptor connected to RJ11 Breakout box)
Current Consumption: 4mA

Specifications
Dimension: 50mm(L) x 35mm(W) x 20mm(H)
Operation Temperature: -20~70 C
Amplifier Fidelity: 0.1%
Manual Trigger Switch: 10V DC Normal State / Push button Momentary 24V DC 800ms
Microphone Type: Omni-direction Condenser
External Microphone: Audio Jack 3.5 mm (Internal Microphone disabled when connected)
Remote Trigger Switch: Audio Jack 2.5mm

Telephony
Frequency Response: 600Hz ~ 3400Hz +/- 3db
Signal /Noise ratio: 50db
Output Impedance: 50ohm
Connections: RJ11 Connector (2wires)
Low Frequency Elimination: -40db (50Hz or 60Hz)
Sensitivity: -42db

Cable Lenth
Maximum length of RJ11 connector: 750 meters

Order Information
910-0800-001: Microphone
910-0800-002: RJ11 Breakout Box with power adapter

PART NUMBER
910-0800-002 Breakout Box
910-0800-001 Mic (Qty 4)
