For Use With IPX
TX100
(10/100M)
Key Features and Benefits
• Provides 2 active connections to network
monitoring equipment
• Separate connections for monitoring
upstream and downstream traffic
• Passive access point to 10/100BaseT
network devices and traffic
• Network transparent, this device does not
require a Mac/IP address
• Compatible with all major manufacturer’s
network equipment
• Redundant power supply option provides
fault tolerance for logging
The TX100...

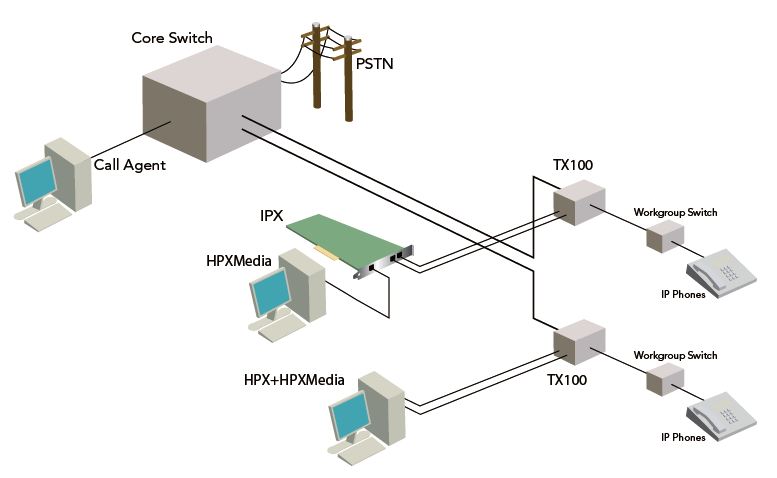

The TX100 provides access to a gigabit network with connections to 10/100
monitoring equipment such as a SmartWORKSTM IPX-C. It can be placed anywhere
in the configuration between two network devices. The traffic from the
access point is amplified and balanced for connection to network monitoring
equipment. Upstream and downstream traffic are separated for
improved application flexibility.
PHYSICAL
REQUIREMENTS
TX100
Dimensions 3.2cm H x 14.1cm W x 13.3cm D
Form Factor Rack mounted (optional 3 card rack mount available)
Power Supply Dual 12VDC/200mA
TX100i
Form Factor：Half-size PCI card
Power Requirements：
12VDC/200mA
SYSTEM REQUIREMENTS
Pentium 4 or equivalent · 2 GHz or better
PCI motherboard or passive backplane with 3.3V power supply, PCI 2.2
bus
LEDs
(1) power indicator
(2) traffic activity indicators
CONNECTORS
Network Ports two 10/100 RJ45
Tap Out Ports two 10/100 RJ45
specifications
IEEE 802.3 compliant shielded 8-pin
CABLING
CAT 5 (straighthrough)
SAFETY AND CERTIFICATIONS (PENDING)
Safety: IEC60950-1 (pending)
EMI: EN55022:1994 + A1:95 + A2:97, EN55024:1998 + A1:01 +
A2:03 and FCC CFR 47 part 15 subpart B: 2005
MODELS AVALABLE
TX100
TX100 Power Supply
TX100 Blank Panel
TX100i
